Toshiba Satellite P750/A660/A665/A655D Board Schematic, PHQAA LA-6831P

The Laptop Motherboard Schematic for Toshiba Satellite A660, Toshiba Satellite A665D Board Schematic, Toshiba Satellite P750 Laptop & Notebook Board Schematic, PHQAA Mainboard Compal LA-6831P
PHQAA Marseille 10R/10RG LA-6831P REV 0.3 Board Schematic.
CPU: Intel Sandy Bridge
Discrete VGA (DDR3) NVIDIA N12M-GE, 64bit with 512MB/1GB / NVIDIA N12P-GS/GE, 128bit with 1GB/2GB
Chipset: Intel PCH Cougar Point – M
OEM: Compal Electronics, Inc.
Document Number: PHQAA LA-6831P M/B
Rev: 0.3
Format: PDF
Total Pages: 58
File size: 1.72MB
⇒ Free: Download⇔ Now

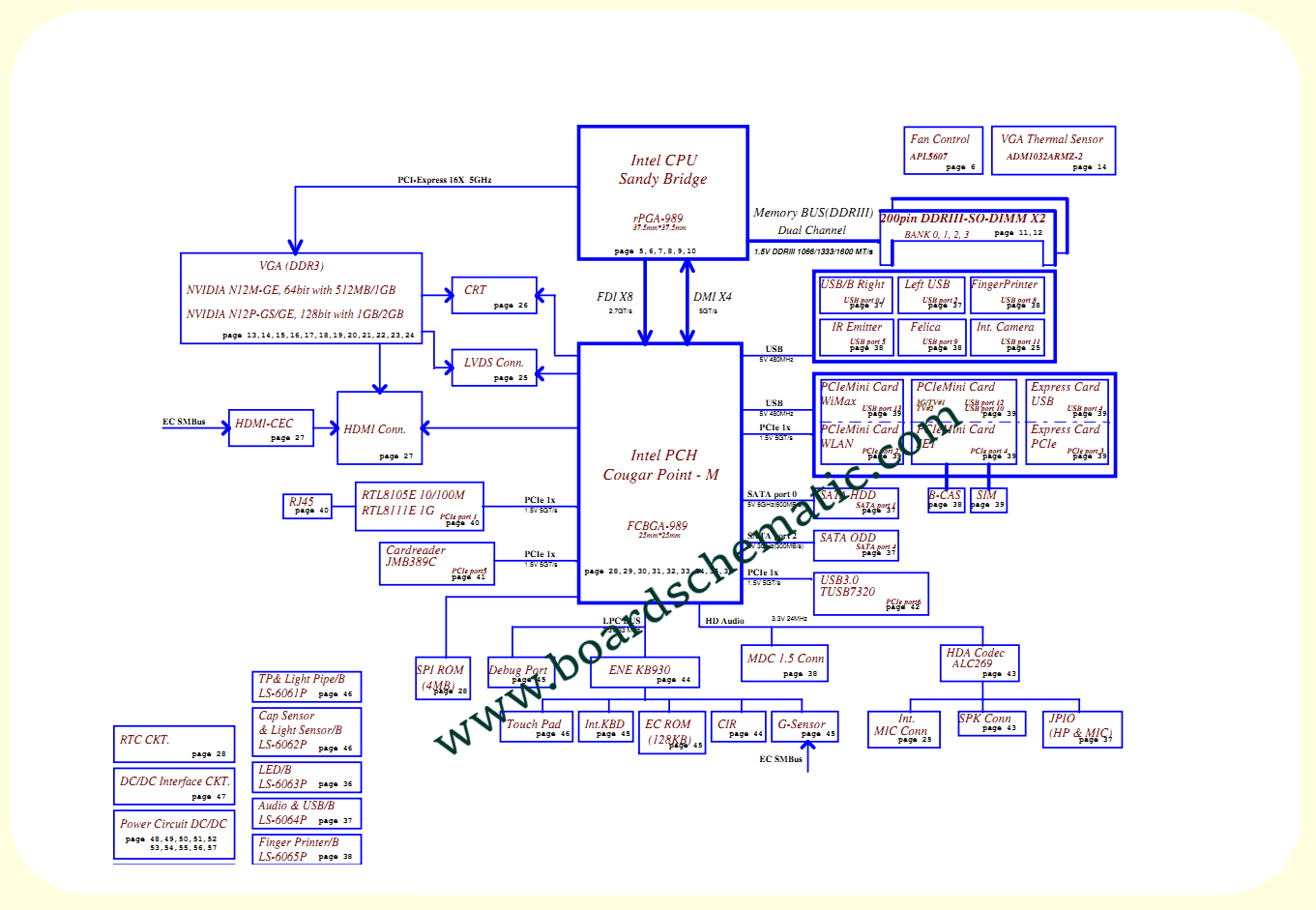

Toshiba Satellite P750 A660 Board Block Diagram ♦Toshiba Satellite P750 A660 Board Block Diagram
