Acer Aspire 7541/7541G/7551/7551G Board Schematic, JE70-DN/SJV71-DN/HM72-DN

The Laptop Motherboard Schematic for Acer Aspire 7541, Acer Aspire 7541G, Acer Aspire 7551, Acer Aspire 7551G Laptop & Notebook Board Schematic, Wistron JE70-DN/SJV71-DN/HM72-DN.
CPU: AMD Champlain S1G4 (45W)
North Bridge: AMD RS880M
South Bridge: AMD SB820 + ATI Madison & Park
OEM: Wistron Corporation
Project code: 91.4HP01.001
PCB P/N: 48.4HP01.011
REVISION: 09929-1
Document Number: JE70-DN
Rev: SB
Format: PDF
Total Pages: 63
File size: 1.02MB
⇒ Free: Download⇔ Now

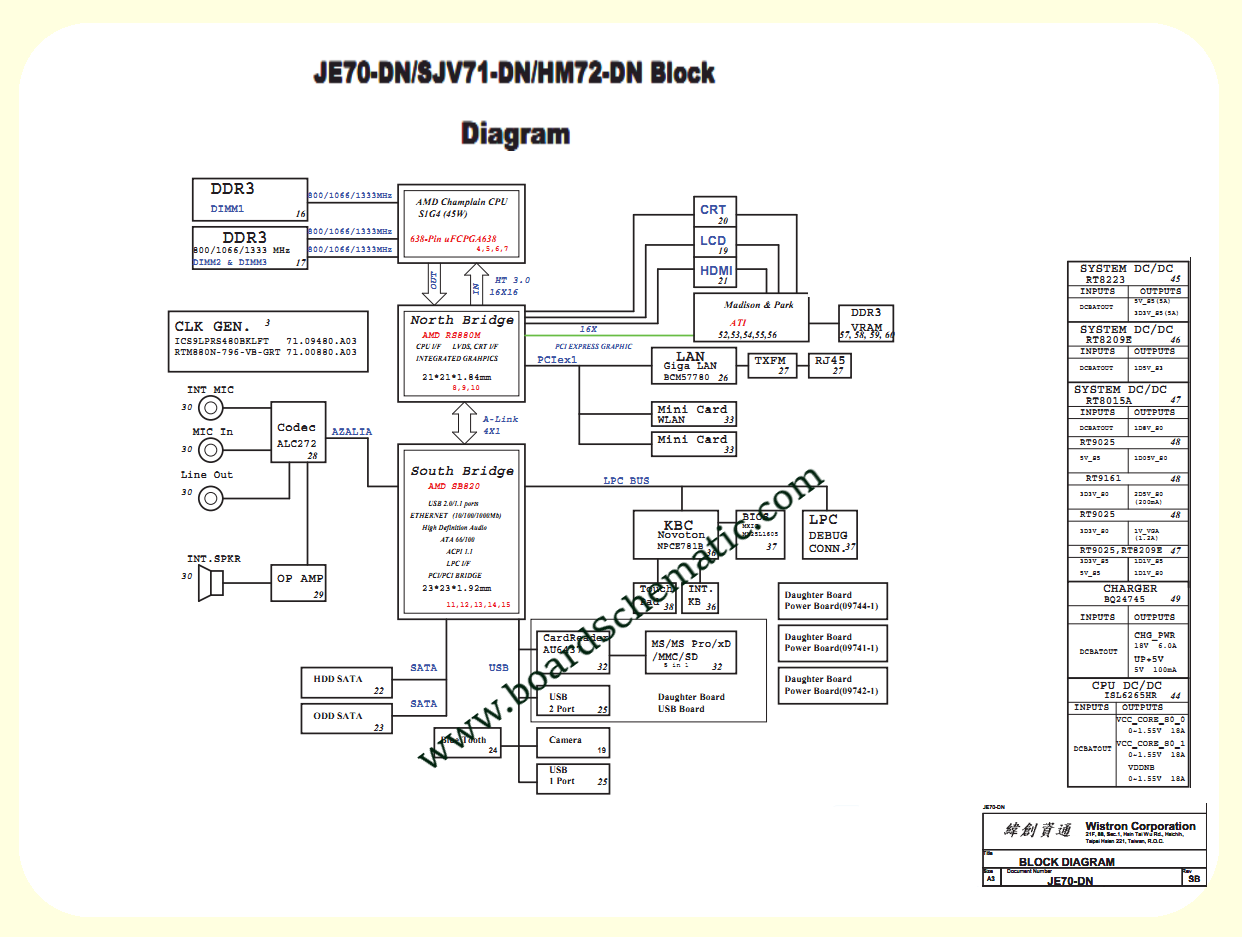

Acer Aspire 7541/7541G/7551/7551G Board Block Diagram ♦Acer Aspire 7541/7541G/7551/7551G Board Block Diagram

Acer Aspire 7541 7551 Board Block Diagram ♦
