Acer Aspire 3 A315-22 Board Schematic & Boardview NB8607

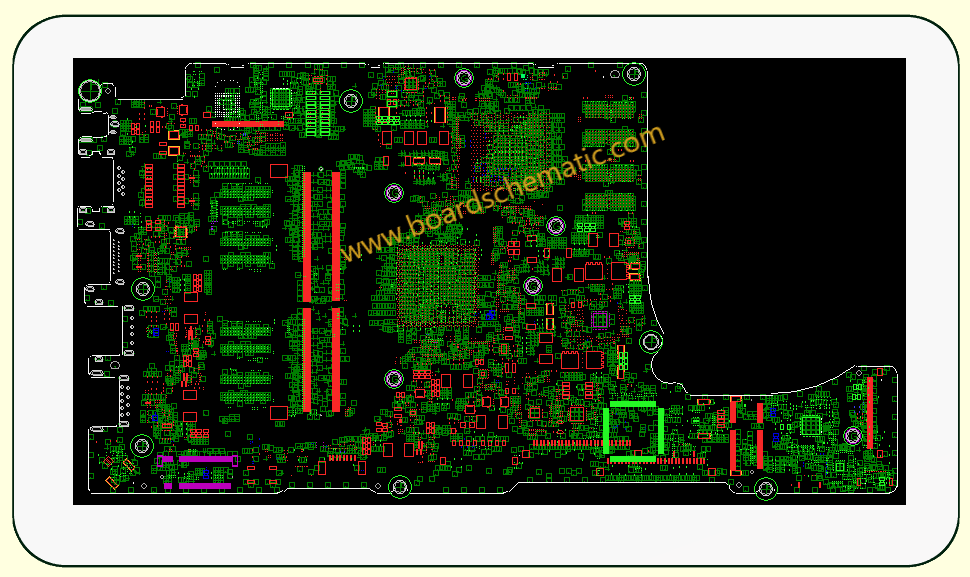

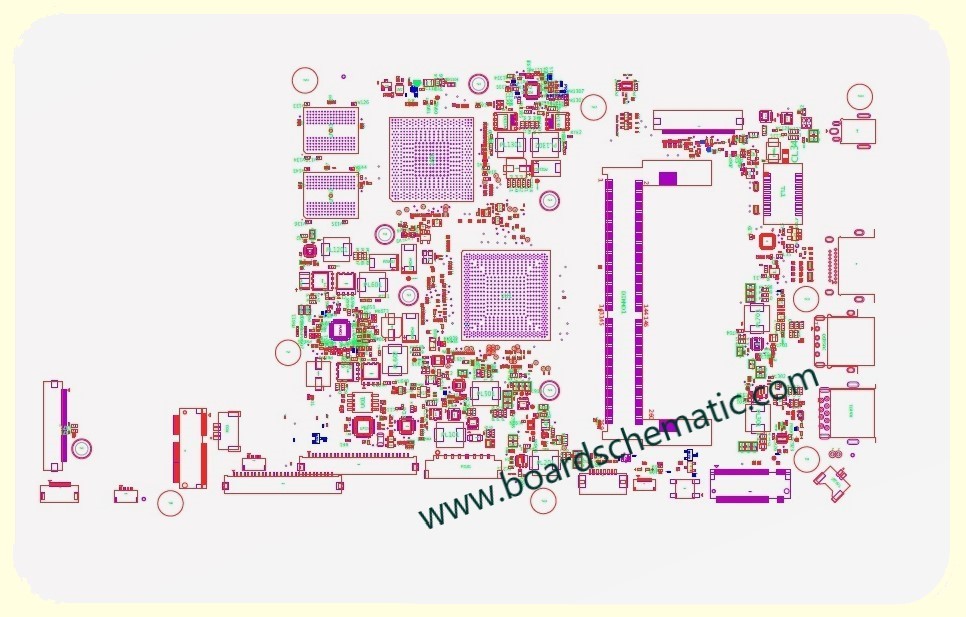

Board Schematic (*.pdf),laptop Boardview files (.CAD and Allegro .BRD), Boardview (.PDF) for Acer Aspire 3 A315-22 laptop, NB8607_PCB_MB_V4 Motherboard.
CPU: AMD FT4 Stoney Ridge DDR4
GPU: UMA
EC: IT8987VG/BX
Language: English, Chinese,
File type: PDF (Searchable)
⇒ Free: Download⇔ Now

Original document, no irrelevant watermark.

File list:
Rose_SR_NB8607_MB_V3_0329_OK.brd.zip
Acer Aspire 3 A315-22 NB8607 Rev1.0.png
NB8607 TOP.pdf
NB8607 BOT.pdf
Acer Aspire 3 A315-22 NB8607 Rev1.0.pdf
Acer Aspire 3 A315-22 - NB8607_PCB_MB_V4 -Huaqin NB8607 Boardview (.CAD).cad

Boardview Software

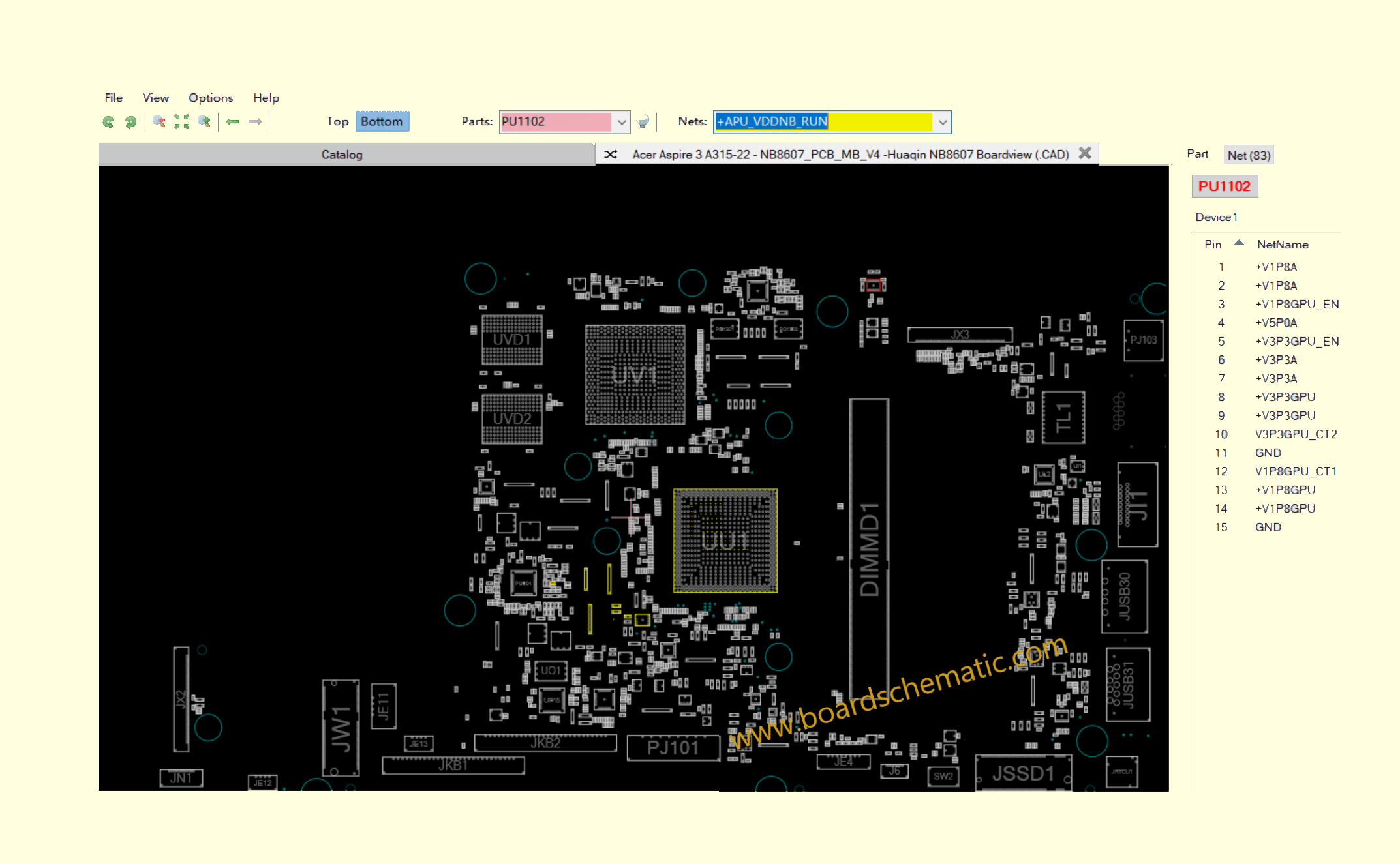

• Open Boardview(Allegro .BRD) file with Allegro Free Physical Viewer (Download)
• Open Boardview(.cad) file with BoardViewer (Download)
